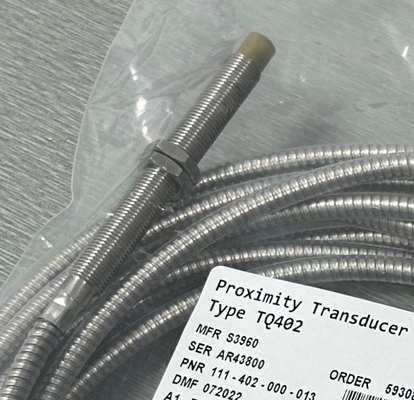

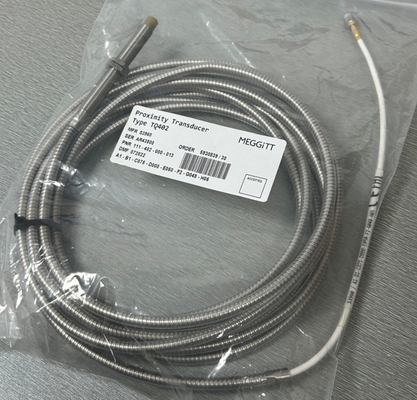

TQ402 111-402-000-013 A1-B1-C072-D000-E050-F2-G050-H05 Proximity Measuring System

TQ402 111-402-000-013 A1-B1-C072-D000-E050-F2-G050-H05 Proximity Measuring System

Features:

Sensitivity

• Ordering option B21 : 8 mV/µm (200 mV/mil)

• Ordering option B22 : 2.5 µA/µm (62.5 µA/mil)

• Ordering option B23 : 4 mV/µm (100 mV/mil)

• Ordering option B24 : 1.25 µA/µm (31.2 µA/mil)

Linear measurement range (typical)

• Ordering option B21 : 0.15 to 2.15 mm, corresponding to a −1.6 to −17.6 V output

• Ordering option B22 : 0.15 to 2.15 mm, corresponding to a −15.5 to −20.5 mA output

• Ordering option B23 : 0.3 to 4.3 mm, corresponding to a −1.6 to −17.6 V output

• Ordering option B24 : 0.3 to 4.3 mm, corresponding to a −15.5 to −20.5 mA output

Frequency response : DC to 20 kHz (−3 dB)

Interchangeability of elements : All components in system are interchangeable

Description:

The TQ402 and TQ412 transducers can be matched with a single EA402 extension cable to effectively lengthen the front-end. Optional housings, junction boxes and interconnection protectors are available for the mechanical and environmental protection of the connection between the integral and extension cables.

The system is based around a TQ402 or TQ412 non-contact sensor and an IQS900 signal conditioner. Together, these form a calibrated proximity measurement system in which each component is interchangeable. The system outputs a voltage or a current proportional to the distance between the transducer tip and the target, such as a machine shaft.
