VSB300 600-009 Terminal Block Equipped With The VSV30x Series Monitoring Modules
Product Overview

The VSB300 600-009 is a dedicated terminal base designed for the VibroSmart® Distributed Monitoring System (DMS) to house VSV30x series monitoring modules (including the VSV301 600-034 and VSV300). With configuration storage, hot-swap capability, flexible communication, and power distribution, it enables the VSV30x series monitoring modules to deliver maximum reliability and maintainability in heavy industrial applications such as power plants, oil and gas, marine, and paper manufacturing.

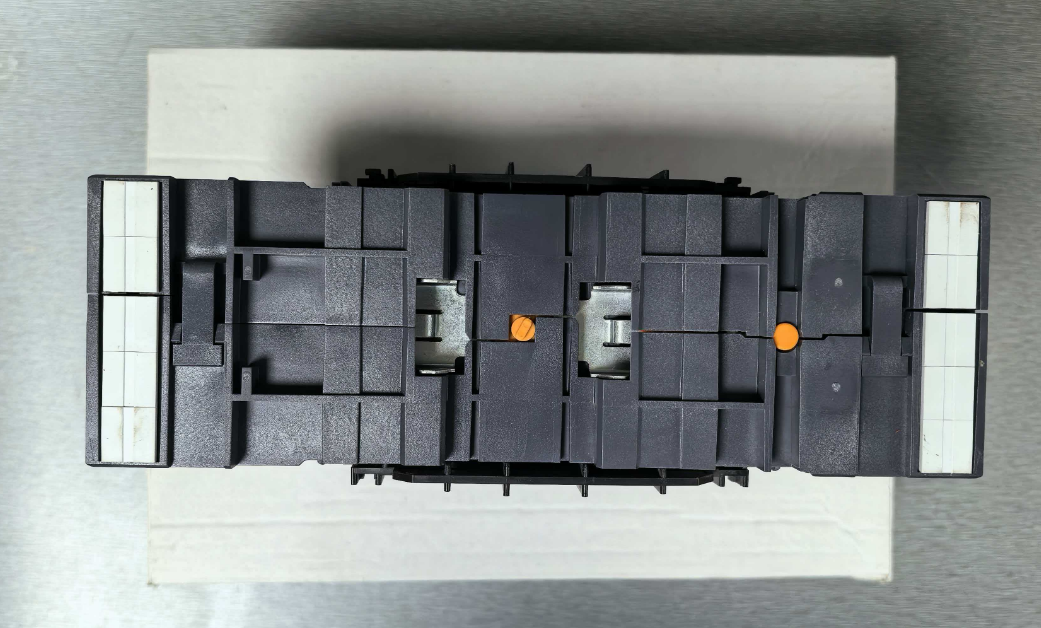

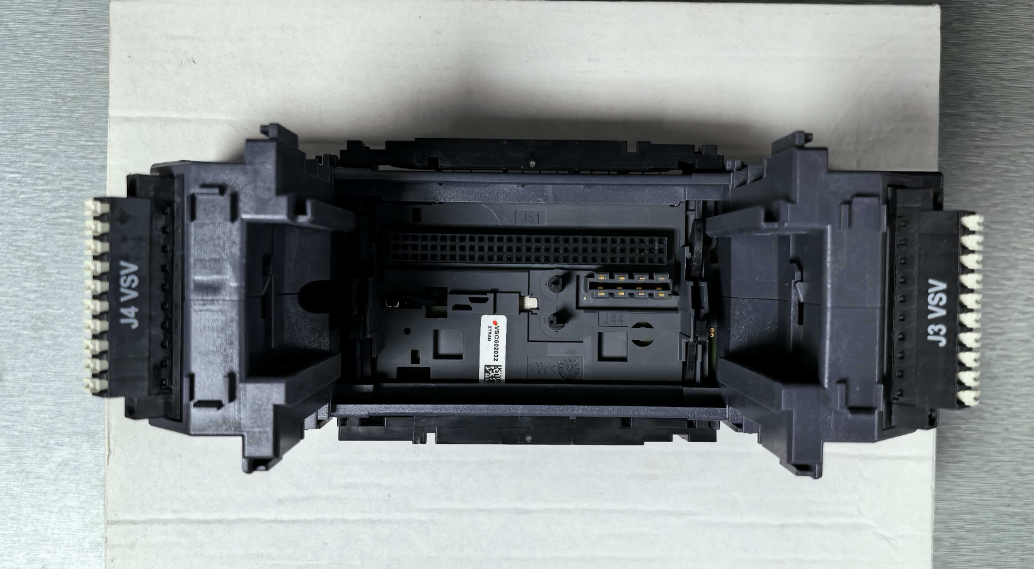

VSB300 600-009 Terminal Block Equipped With The VSV30x Series Monitoring Modules 0

The base features DIN rail mounting and a robust construction, making it suitable for industrial sites, control cabinets, and hazardous areas (Ex Zone 2). It not only provides all input/output (I/O) interfaces but also incorporates non-volatile memory to store the complete configuration information of the connected modules, supporting hot-swapping and automatic configuration recovery.

Key Features
  • Designed specifically for the VSV30x series: Perfectly compatible with the VSV301 and VSV300 monitoring modules, featuring mechanical key codes to prevent incorrect insertion
  • Hot-swap support: Modules can be replaced without powering down the system, and configurations are automatically restored from the base unit
  • Non-volatile configuration storage: The base unit's built-in memory retains module configurations, significantly reducing downtime
  • Side Bus Connectors (J10/J11): Adjacent modules communicate directly without the need for an Ethernet cable
  • Ethernet Interfaces (Eth1/Eth2): Supports 100BASE-TX with a maximum distance of 100 meters
  • DIP switches are used to select the active SBUS port (Side Bus or Ethernet)
Technical Advantages
Advantage Description
High Availability Hot-swappable modules + redundant power supplies + redundant communication, minimizing system downtime
Flexible Deployment Modules can be installed side-by-side (no network cables) or separately (via Ethernet), adapting to different cabinet layouts
Reduced Cabling Costs Side-bus distribution of power and signals minimizes external cables
Configuration Security Non-volatile memory + module locking + mechanical key codes prevent accidental operation
Comprehensive Certifications Complies with major global industrial and explosion-proof standards, facilitating export and project acceptance
Product Specifications
Brand Name Other
Model VSB300
Ordering Information 600-009
Catalog Vibration Monitoring
Gross Weight/Shipping Weight 2.2 lbs / 35.2 oz / 1kg
Packing Size 16cm x 16 cm x 12 cm
Country of Origin China
HS Code 8537101190
Lead Time In Stock
Shipping Port Xiamen
Payment T/T
Sales Price $2500
Warranty 12 months
Lead Time 3-5 work days
Courier Partners DHL, UPS, TNT, FedEx and EMS

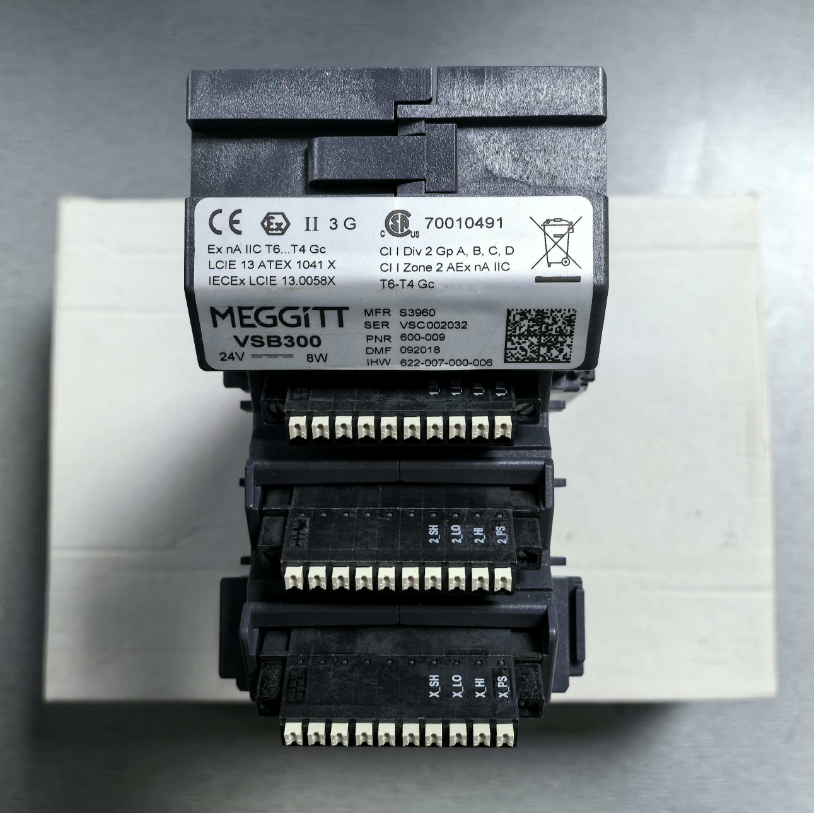

VSB300 600-009 Terminal Block Equipped With The VSV30x Series Monitoring Modules 1
Company Information

We are the supplier for industrial automation spare parts. We specialize in PLC module, DCS card pieces, ESD system card pieces, vibration monitoring system card pieces, steam turbine control system module, gas generator spare parts. We have established relationships with famous PLC DCS product maintenance service providers worldwide.

Our products are widely used in: CNC machinery and metallurgy, oil and gas, petrochemical, chemical, paper printing, textile printing and dyeing, machinery, electronics manufacturing, automobile manufacturing, tobacco, plastic machinery, electricity, water conservancy, water treatment/environmental protection, municipal engineering, heating, energy, transmission and distribution industries.
